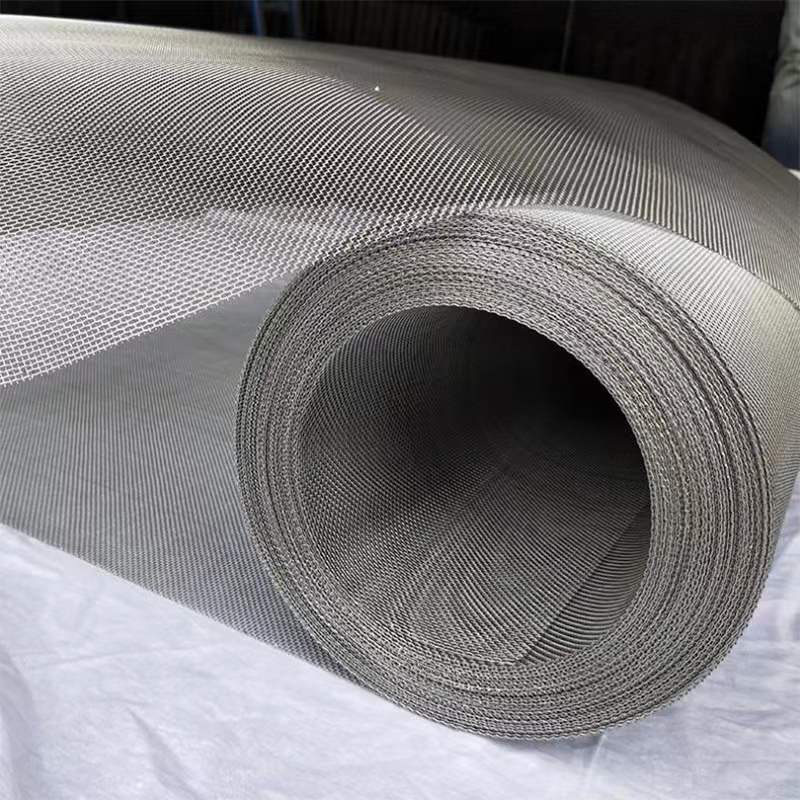

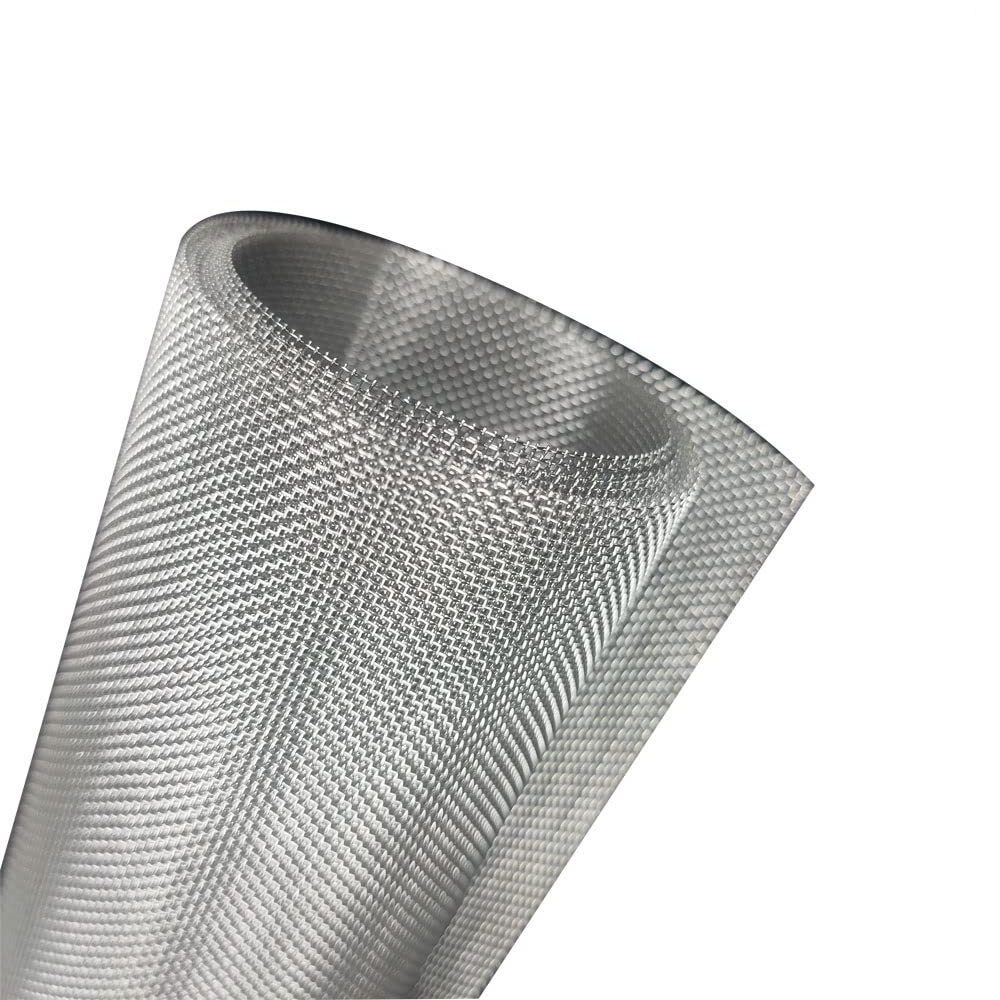

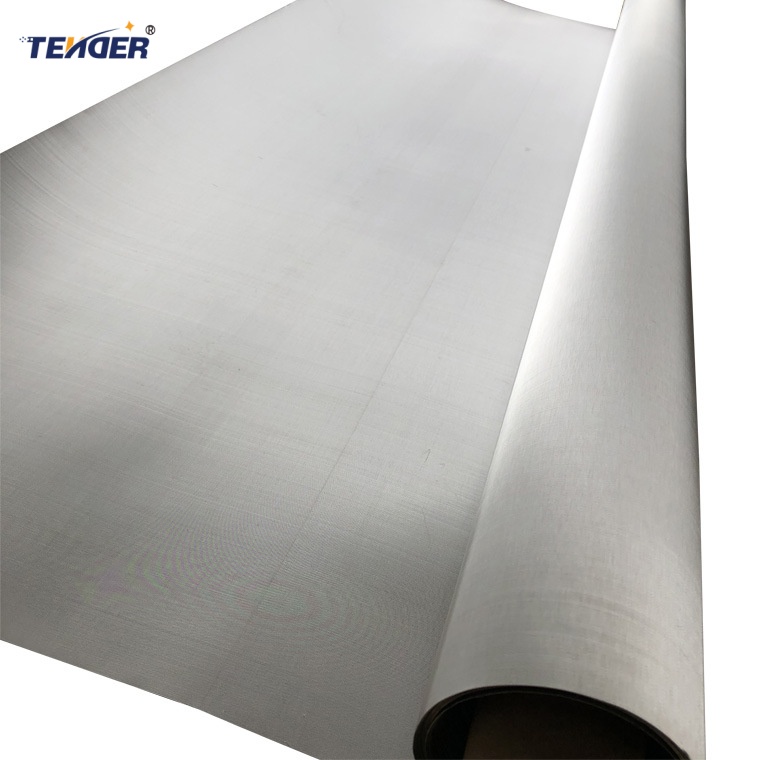

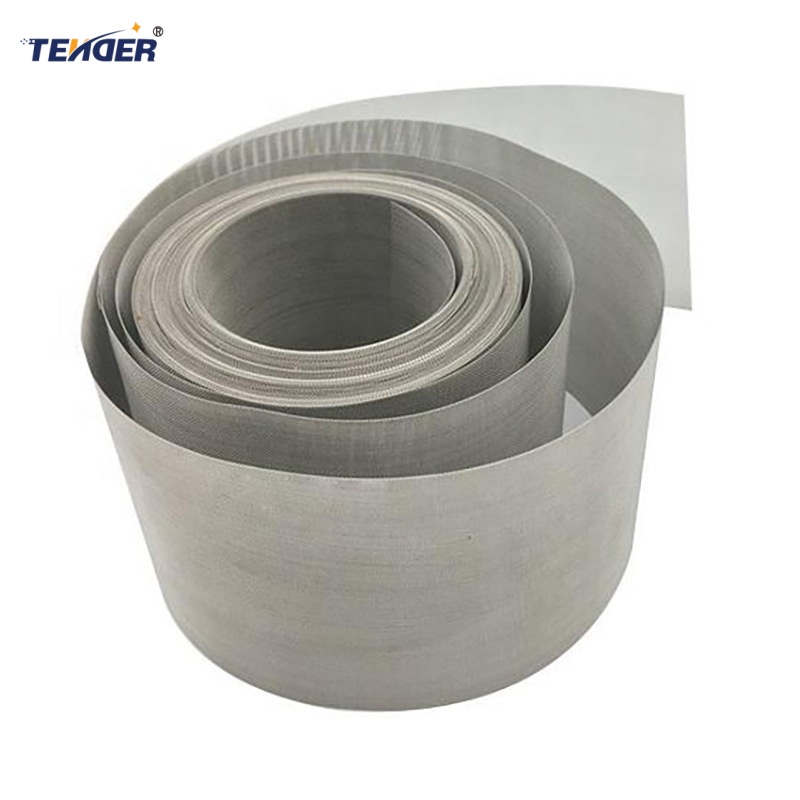

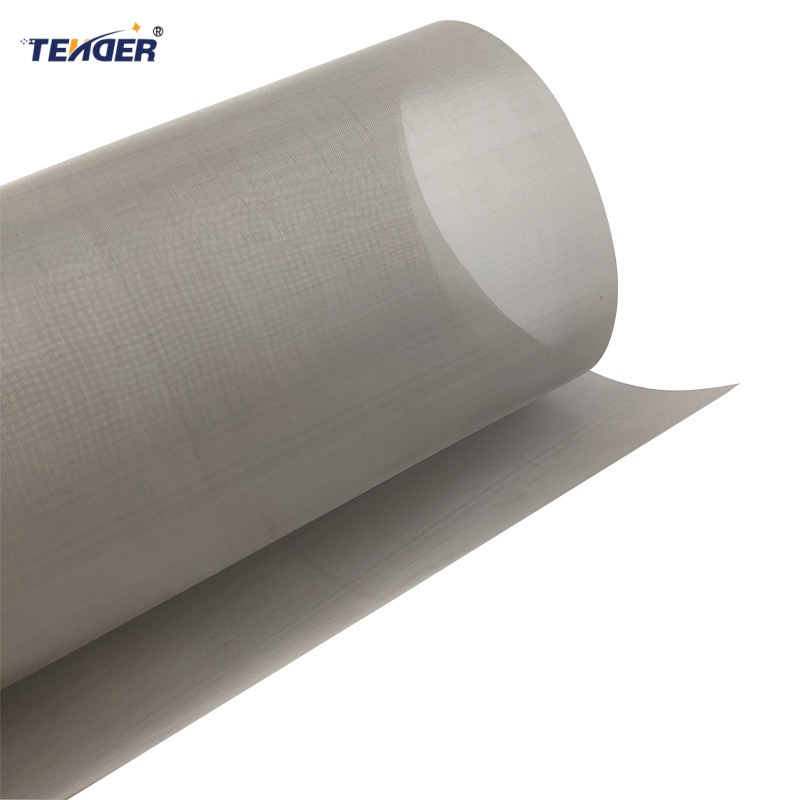

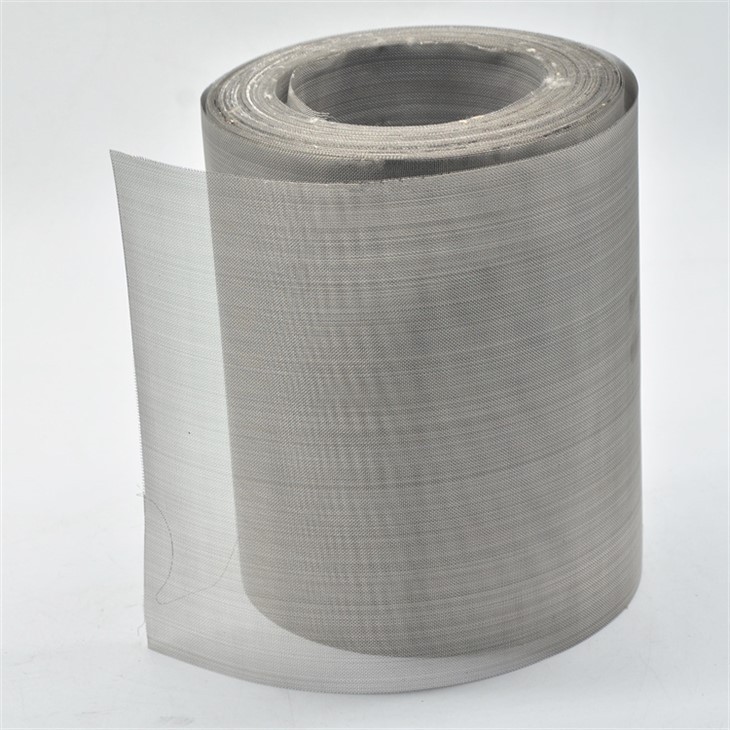

Hastelloy Woven Wire Mesh

Name: High Quality Hastelloy Woven Wire Mesh and Mesh Types for Sale
Availability: InStock
Rating: 4.5 (89 reviews)

Hastelloy mesh is a metal mesh material made of Hastelloy alloy (mainly composed of nickel, molybdenum, iron, cobalt, etc.), which has excellent corrosion resistance and high temperature strength. It is commonly used in highly corrosive environments such as chemical engineering, marine engineering, aerospace, etc.

Send Email Download

Product Description

Characteristic Advantages

1、Excellent corrosion resistance

The most notable feature of Hastelloy mesh is its excellent corrosion resistance, particularly suitable for the following environments:

Strong acid environment (such as sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid)

Strong oxidant media (such as chlorine gas, hypochlorite)

Seawater and salt spray environment

Wet chloride environment (such as wet chlorine gas)

2、 Excellent high-temperature performance

Hastelloy can maintain structural stability and oxidation resistance at high temperatures.

Suitable for filtration and separation operations in high-temperature atmospheres or corrosive high-temperature liquids.

3、 High strength and good mechanical properties

Hastelloy still has good tensile strength and ductility in high temperature and corrosive environments.

Not easy to break and has a long service life.

Common specifications

According to usage, there are four commonly used specifications for Hastelloy alloy:

Hastelloy C-276: Universal type, resistant to various acids and reducing corrosion.

Hastelloy C-22: Has stronger resistance to wet chlorine and various strong oxidants.

Hastelloy B-2: Especially suitable for hydrochloric acid environments.

Hastelloy X: mainly used in high-temperature applications, commonly used in the aviation industry

Specification sheet of Hastelloy B woven wire mesh
Item	Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
RHB-01	16 × 16	0.014	0.049	60.2
RHB-02	30 × 30	0.0085	0.025	55.4
RHB-03	30 × 30	0.0106	0.0227	46.5
RHB-04	60 × 60	0.0072	0.009	30.5
RHB-05	200 × 200	0.002	0.003	36

Specification sheet of Hastelloy C276 woven wire mesh
Item	Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
RHC276-08	16 × 16	0.018	0.045	50.7
RHC276-09	16 × 16	0.009	0.0535	73.27
RHC276-10	20 × 20	0.023	0.027	29.2
RHC276-11	20 × 20	0.016	0.034	46.2
RHC276-12	20 × 20	0.009	0.041	67.2
RHC276-13	24 × 24	0.014	0.028	44.2
RHC276-14	30 × 30	0.013	0.02	37.1
RHC276-15	30 × 30	0.009	0.024	53.1
RHC276-16	40 × 40	0.01	0.015	36
RHC276-17	40 × 40	0.009	0.016	41
RHC276-18	40 × 40	0.0075	0.018	49
RHC276-19	50 × 50	0.009	0.011	30.3
RHC276-20	60 × 60	0.0072	0.009	30.5
RHC276-21	60 × 60	0.0044	0.0123	54.2
RHC276-22	80 × 80	0.007	0.006	19.4
RHC276-23	80 × 80	0.001	0.0085	46.2
RHC276-24	100 × 100	0.001	0.006	36
RHC276-25	120 × 120 T	0.004	0.0043	27
RHC276-26	180 × 180	0.002	0.0036	41
RHC276-27	200 × 200	0.0023	0.0027	48
RHC276-28	200 × 200	0.002	0.003	36

Specification sheet of Hastelloy X woven wire mesh
Item	Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
RHX-01	10 × 10	0.025	0.075	56.3
RHX-02	18 × 18	0.009	0.047	70.4
RHX-03	20 × 20	0.016	0.034	46.2
RHX-04	50 × 50	0.003	0.017	72.3
RHX-05	60 × 60	0.0075	0.009	30.5

Application Area

Common applications include:

Chemical equipment filter mesh, catalyst carrier

Heat exchanger mesh

Pickling equipment rack

Aviation Gas System Filter Components

Metal screen mesh for offshore platforms

High-Performance Hastelloy Woven Wire Mesh for Corrosive Environments

Our Hastelloy Woven Wire Mesh offers superior corrosion resistance and mechanical strength, ideal for chemical processing, aerospace, and marine applications. This durable mesh ensures reliable filtration and protection in highly corrosive and high-temperature environments.

Durable Hastelloy Woven Wire Mesh for Extreme Corrosive and High-Temperature Uses

The Hastelloy Woven Wire Mesh is manufactured from premium Hastelloy alloy, known for its exceptional resistance to corrosion, oxidation, and high temperatures. This mesh is widely used in chemical processing, aerospace, marine, and power generation industries where harsh environments challenge traditional materials.

Hastelloy’s unique composition provides outstanding strength and durability, maintaining performance in acidic, alkaline, and oxidizing conditions. The woven wire mesh features precise weaving with uniform apertures, ensuring effective filtration, particle separation, and mechanical stability under extreme conditions.

Its excellent resistance to pitting, crevice corrosion, and stress corrosion cracking makes the mesh ideal for filtration in highly corrosive liquids and gases. The Hastelloy woven mesh also performs well at elevated temperatures, retaining strength and shape without degradation.

Available in various mesh sizes and wire diameters, this Hastelloy Woven Wire Mesh can be customized to suit specific industrial filtration or reinforcement needs. Its versatility and longevity help reduce maintenance and replacement frequency, optimizing operational efficiency.

With strict quality control and advanced manufacturing, our Hastelloy woven wire mesh guarantees reliable, long-term performance in the most demanding applications.

Premium Hastelloy Woven Wire Mesh for Industrial Filtration and Protection

Hastelloy woven wire mesh is a premium-grade industrial filtration material known for its superior corrosion resistance, mechanical strength, and high-temperature stability. It is widely used in industries such as chemical processing,

One of the most compelling reasons to choose Hastelloy mesh is its except.

Moreover, Hastelloy woven mesh is available in various weave types (plain, twill, Dutch) and mesh counts, offering preci f

In summary, Hastelloy wire mesh is the material of choice for critical filtration and protection tasks where performance, reliability, and longevity are essential. Though it is more expensive than standard alloys, its long make it a cost-effective solution in the long run.
