Product Description
Characteristic Advantages
1. Large filtration area: The folding structure increases the filtration area per unit volume.
2. Reusable cleaning and use: It can be cleaned multiple times using methods such as ultrasonic waves or reverse flushing.
3. High temperature and corrosion resistance: Made of materials such as stainless steel, Monel, titanium, etc., suitable for harsh environments.
4. Sturdy structure, not easily deformed: suitable for high-pressure and high-speed fluid filtration applications.
5. The filtering accuracy can be customized: from tens of micrometers to hundreds of micrometers.
Common Specifications
1. Filter layer material: stainless steel woven mesh, stainless steel sintered mesh, multi-layer composite mesh
2. Inner skeleton: perforated stainless steel support tube
3. End cap: stainless steel or carbon steel, welded or bonded for fixation
4. Sealing methods: silicone ring, fluororubber ring, metal welding, etc
Parameter | Common Range / Options |
Outer Diameter (OD) | 25 mm – 150 mm (1" – 6") |
Length | 50 mm – 1000 mm (2" – 40") or customized |
Filtration Accuracy | 1 μm – 500 μm (standard: 5, 10, 25, 50, 100, 200, 300 μm) |
Filter Media | Stainless steel woven mesh, sintered mesh, multi-layer composite mesh |
Mesh Type | Plain weave, twill weave, Dutch weave, sintered five-layer mesh |
Number of Pleats | 20 – 80 pleats (depends on length and diameter) |
Pleat Height | 8 mm – 30 mm |
Effective Filtration Area | 2 – 10 times greater than non-pleated filters of same size |
End Cap Material | Stainless steel 304/316, galvanized steel, aluminum |
Core/Support Tube | Perforated stainless steel tube (304 or 316), optional inner and outer layers |
Sealing Method | Argon arc welding, epoxy bonding, silicone/Viton/PTFE O-ring |
Working Temperature | -200°C to +600°C (depending on material) |
Working Pressure | Up to 30 MPa (300 bar), depending on wall thickness and structure |
Flow Direction | Inside to outside (standard), or outside to inside |
Cleaning Method | Ultrasonic cleaning, backflushing, chemical cleaning |
Connection Type | Threaded (NPT/BSP), flange, clamp, quick-connect, customized |
Application Area
1.Petrochemical equipment filtration
2.Hydraulic and lubrication system
3.Pharmaceutical and food processing equipment
4.Water treatment system
5.Aerospace and nuclear power plant filtration equipment

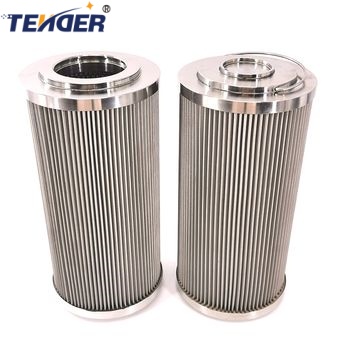

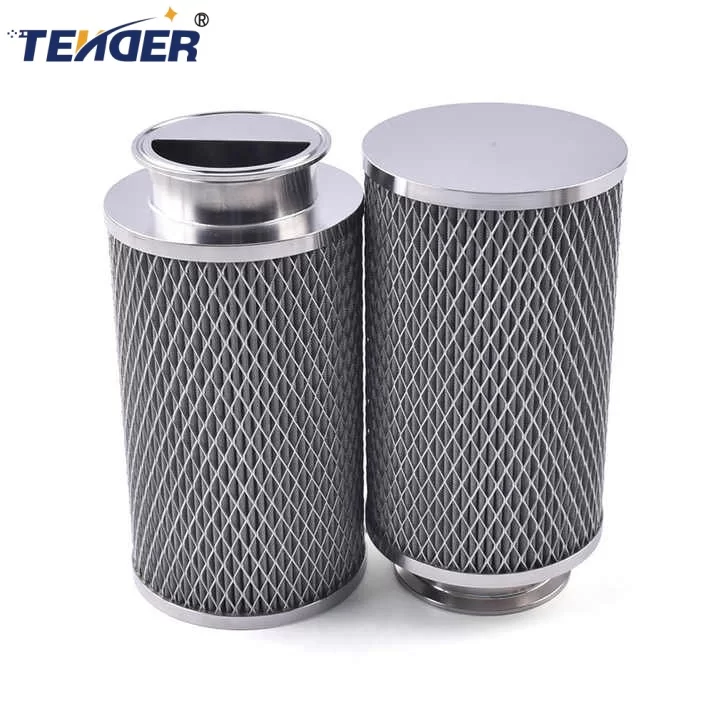

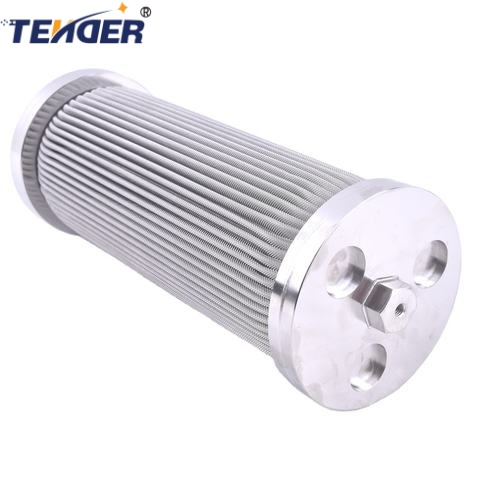

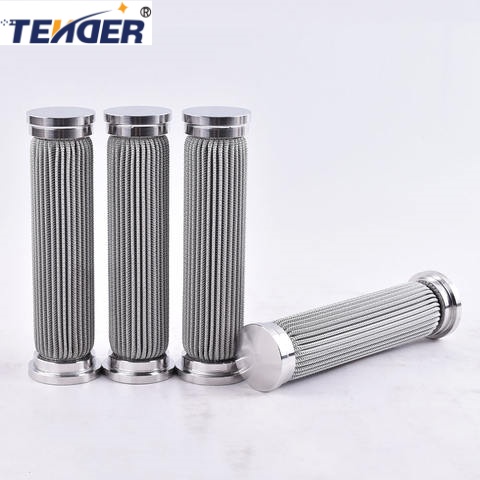

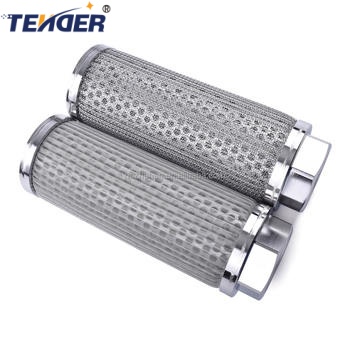

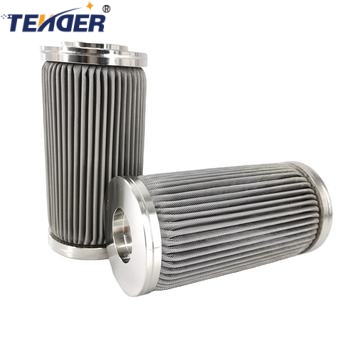

Our metal pleated filter cartridge is engineered with premium-grade stainless steel to provide long-lasting, reliable filtration in industrial settings. Built with a 10 micron mesh filter, it effectively captures fine particles, making it ideal for applications requiring precision and consistency. The stainless steel mesh filter core offers high corrosion resistance and mechanical strength, ensuring stability even under high flow and pressure conditions.
This pleated wire mesh filter element is designed to maximize surface area while maintaining compact dimensions, thereby increasing dirt-holding capacity and service life. Whether you're using it in a dust collection system or as part of a dust extractor pleated filter cartridge, its construction allows for easy cleaning and reusability, which significantly reduces maintenance costs.
We also offer sintered SS filter cartridges for high-temperature or corrosive fluid environments, providing stable performance in challenging conditions. These cartridges are compatible with a wide range of industrial systems including gas, oil, water, and chemical filtration.
By choosing our stainless steel filter element, you're investing in long-term performance, reduced downtime, and improved operational efficiency. Each unit is precision-welded and inspected to meet international filtration standards.
This stainless steel filter element is an advanced solution for fine particle filtration across various industrial environments. It is particularly suited for dust extraction systems, serving as a key component in dust extractor pleated filter cartridges. The pleated design increases surface area and ensures high dirt-holding capacity, reducing the frequency of replacements.
Made from top-grade stainless steel mesh, this filter offers exceptional durability, corrosion resistance, and heat tolerance. The 10 micron mesh filter structure provides precision filtering, effectively capturing particles while maintaining consistent flow rates. Whether in high-pressure fluid systems or airborne dust filtration, this stainless steel mesh filter maintains its shape and performance over time.
Additionally, the filter can be customized as a sintered SS filter cartridge, which provides higher structural integrity and is suitable for backwashing and reuse. The metal pleated filter cartridge design ensures ease of installation and compatibility with existing filter housings, making it a cost-effective upgrade for your current system.
Ideal for industries such as petrochemical, food processing, pharmaceuticals, and metalworking, this pleated wire mesh filter element meets stringent quality standards and provides a long service life under extreme conditions. Choose this filter for reliable protection of your equipment and cleaner processing environments.
