Product Description
Characteristic Advantages
High corrosion resistance – Effective in seawater, acids, and chloride-containing environments
Oxidation resistance – Up to 1100°C (2000°F) for some grades
Excellent strength – Maintains mechanical integrity at both high and cryogenic temperatures
Non-magnetic – Useful in applications where magnetism must be avoided
Durable and long service life – Even in extreme chemical or thermal conditions
Common Specifications
Grade | UNS Number | Main Composition | Features |
Inconel 600 | N06600 | Ni ~72%, Cr ~15%, Fe ~8% | Excellent resistance to heat and oxidation |
Inconel 601 | N06601 | Ni ~61%, Cr ~23%, Al ~1.4% | Outstanding resistance to high-temperature oxidation |
Inconel 625 | N06625 | Ni ~58%, Cr ~21%, Mo ~9%, Nb ~3.6% | Superior corrosion resistance in harsh environments |
Inconel 718 | N07718 | Ni ~52%, Cr ~19%, Nb+Mo+Ti | High strength, excellent fatigue resistance |
Mesh Count | Wire Diameter (mm / inch) | Aperture Size (mm / inch) | Weave Type | Typical Applications |
10 mesh | 0.60 mm / 0.0236" | 1.94 mm / 0.0764" | Plain Weave | High-temp filters, chemical screens |
20 mesh | 0.50 mm / 0.0197" | 0.77 mm / 0.0303" | Plain Weave | Heat treatment baskets, acid filtration |
40 mesh | 0.28 mm / 0.0110" | 0.36 mm / 0.0142" | Plain Weave | Exhaust gas filtration, catalyst support |
60 mesh | 0.18 mm / 0.0071" | 0.24 mm / 0.0094" | Twill Weave | Precision chemical filtration |
80 mesh | 0.15 mm / 0.0059" | 0.17 mm / 0.0067" | Plain Weave | Oxidizing environment filtering |
100 mesh | 0.10 mm / 0.0039" | 0.15 mm / 0.0059" | Plain / Twill | Fine filtration at high temperature |
150 mesh | 0.07 mm / 0.0028" | 0.10 mm / 0.0039" | Twill Weave | Super-fine chemical or gas filtration |
200 mesh | 0.05 mm / 0.0020" | 0.08 mm / 0.0031" | Twill Weave | Ultra-fine filtration, aerospace/atomic use |
Application Area
Aerospace & Jet Engines
Marine & Subsea Filters
Nuclear & Petrochemical Industries
Heat Exchangers & Thermal Processing
Catalyst support screens
Gas Turbine Inlet Screens
High-temperature filtration of corrosive gases/liquids

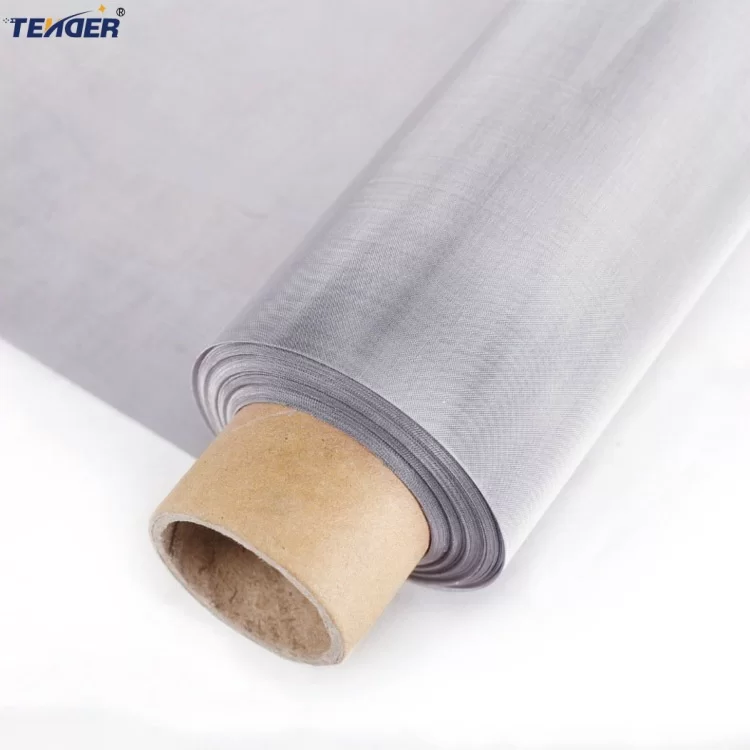

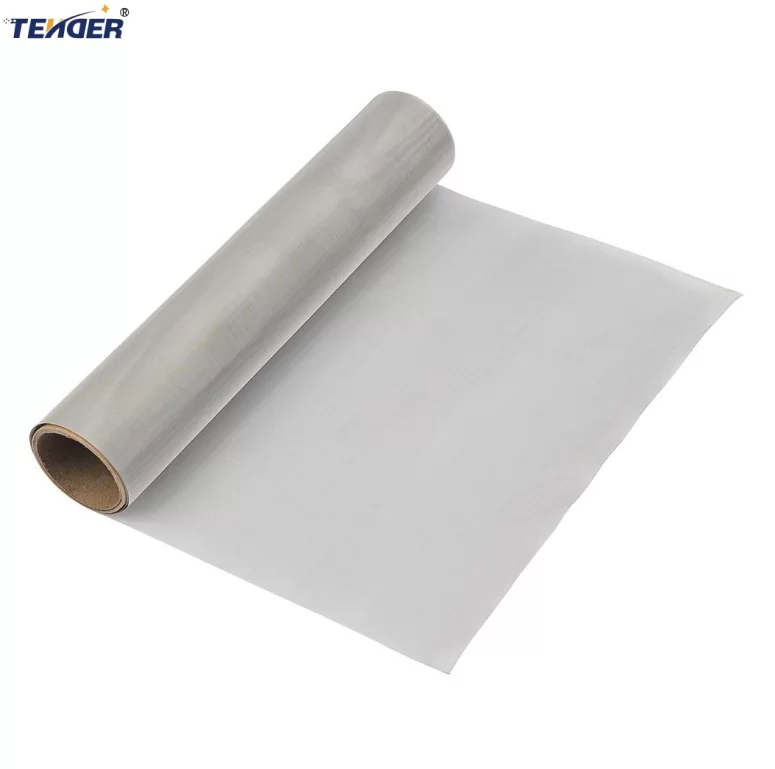

The Inconel Woven Wire Mesh is manufactured from premium Inconel alloy, renowned for its excellent resistance to oxidation, corrosion, and high temperatures. This mesh is widely used in aerospace, chemical processing, power generation, and nuclear industries where materials must withstand extreme environments.
Inconel’s unique nickel-chromium composition provides superior mechanical strength and stability at temperatures exceeding 1,000°C. The woven wire mesh features precise weaving with uniform apertures, ensuring effective filtration, particle separation, and structural integrity under demanding conditions.
Its exceptional resistance to oxidation, thermal fatigue, and chemical attack makes it ideal for filtration in harsh atmospheres and high-temperature gas environments. The mesh also resists stress corrosion cracking, a critical property for long-term durability.
Available in various mesh sizes and wire diameters, the Inconel Woven Wire Mesh can be customized for specific filtration, reinforcement, or shielding requirements. Its versatility and robustness help reduce maintenance and improve operational efficiency.
With strict quality control and advanced manufacturing processes, our Inconel woven wire mesh guarantees consistent performance and reliability in the most challenging industrial applications.
Our Inconel Woven Wire Mesh combines exceptional corrosion resistance, high-temperature strength, and mechanical durability, making it the ideal choice for aerospace, chemical, and power generation industries. Produced from high-grade Inconel alloy, this mesh withstands extreme environments where conventional metals fail.
The woven mesh structure ensures uniform aperture size and robust mechanical support, delivering precise filtration and particle separation. Inconel’s excellent resistance to oxidation, carburization, and thermal cycling allows the mesh to maintain its integrity during prolonged exposure to high temperatures and corrosive substances.
This mesh is widely used in heat exchangers, gas turbines, catalytic converters, and filtration systems operating under severe conditions. It also resists stress corrosion cracking, enhancing its lifespan and reliability.
Customizable mesh counts and wire diameters allow for tailored solutions to specific industrial filtration or reinforcement needs. The Inconel Woven Wire Mesh offers a long service life and reduced maintenance costs, providing excellent value for demanding applications.
Choose our Inconel woven wire mesh for superior performance, durability, and resilience in the harshest industrial environments.
