Product Description
Characteristic Advantages
1. Ultra high melting point and thermal stability
The melting point of molybdenum is as high as 2620 ° C, and it can work stably for a long time in extremely high temperature environments.
Strong thermal shock resistance, not easily cracked or deformed due to sudden temperature changes.
2. Excellent corrosion resistance
Has good stability in neutral, weak acid, and weak base solutions.
Especially resistant to oxidation, nitridation, and hydrogen gas atmosphere corrosion under high temperature.
3. Good electrical and thermal conductivity
The conductivity is close to that of copper metal, suitable for electric heating or electric field shielding purposes.
Good thermal conductivity and high heat dissipation efficiency.
4. High strength and good ductility
Can maintain strength even at high temperatures.
Common Specifications
Mesh Count | Aperture Size (mm) | Typical Wire Diameter (mm) | Application Reference |
10 mesh | 2 | 0.5 | Coarse filtration, heating support mesh |
20 mesh | 1 | 0.4 | Furnace shielding, material loading trays |
40 mesh | 0.45 | 0.25 | High-temp gas filtration, shielding mesh |
60 mesh | 0.3 | 0.2 | Sintering support mesh, filter layers |
80 mesh | 0.2 | 0.15 | Vacuum evaporation, fine filtration |
100 mesh | 0.15 | 0.12 | Semiconductor gas distribution systems |
150 mesh | 0.1 | 0.08 | Micron filtration, electronic shieldin |
Item | Range |
Standard Widths | 10 mm – 1500 mm (customizable) |
Standard Lengths | Usually 30 meters per roll, or cut as required |
Material Purity | ≥ 99.95% Mo |
Type | Features |

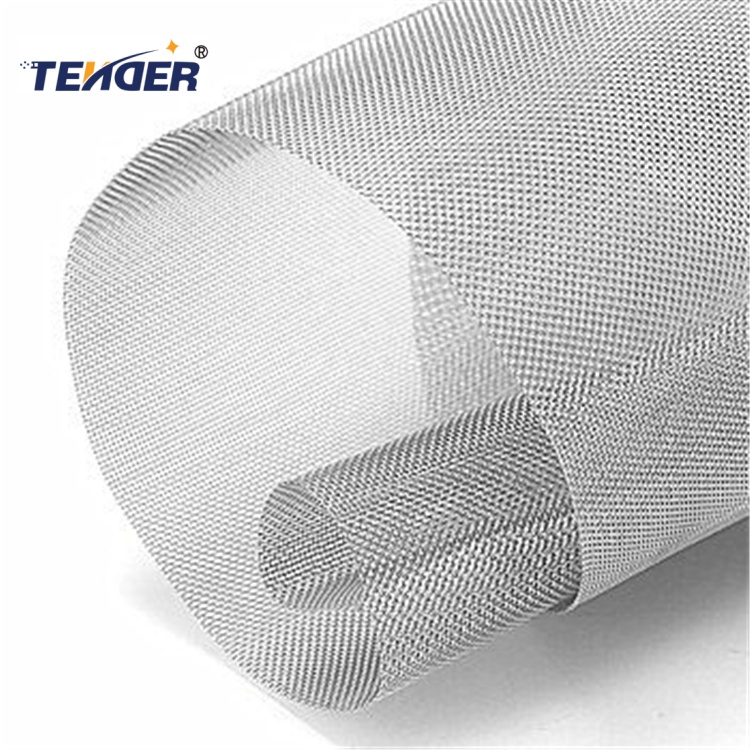

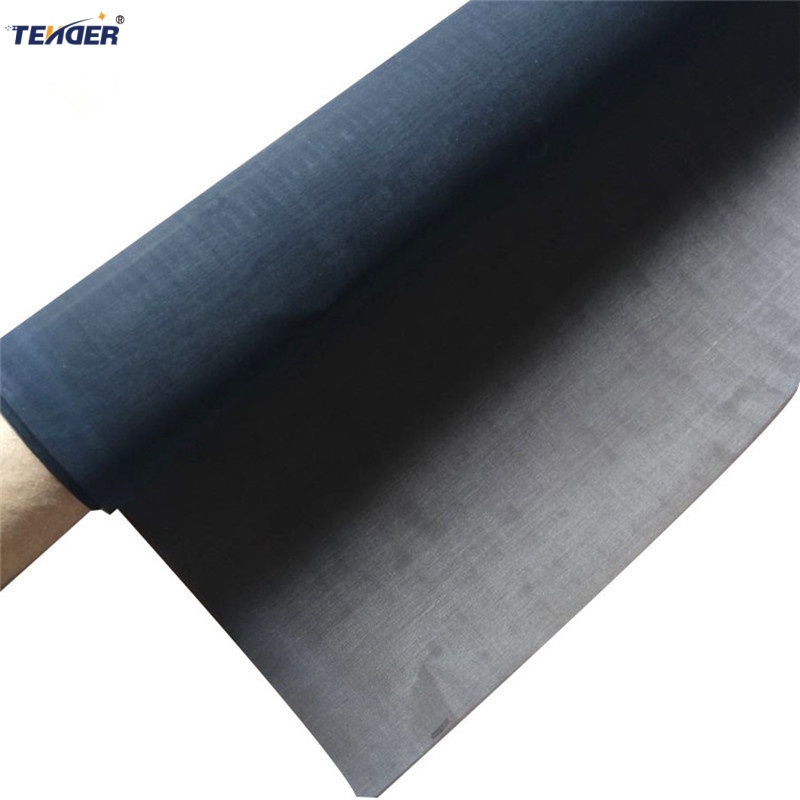

As-woven Moly Mesh | Dark gray or silvery metallic surface |
Vacuum Annealed Mesh | Improved ductility, reduced internal stress, suitable for high-temp use |
Custom Shapes | Can be cut into discs, strips, or other required forms |
Application Area
1 . Vacuum furnaces and molybdenum boats are used as heating elements, insulation screens, or material support devices for high-temperature furnaces
2 . Semiconductor industry is used for electron beam evaporation, ion implantation, high-temperature support, etc
3. Used in the metallurgical industry as high-temperature filtration materials and sintering support nets
4 Aerospace applications for high-temperature structural components and combustion chamber shielding nets
Processing quartz glass as a support, heating or sintering carrier

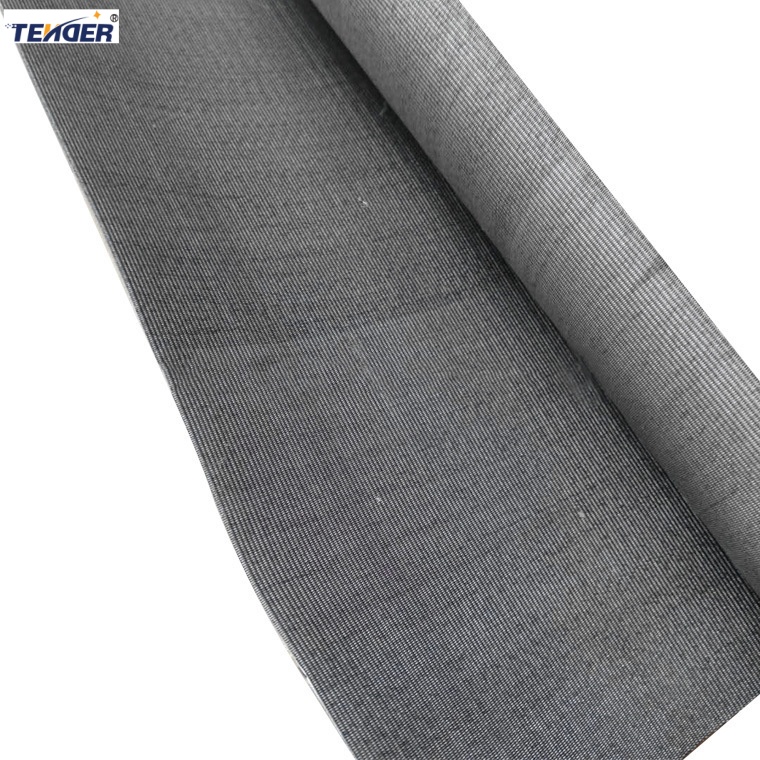

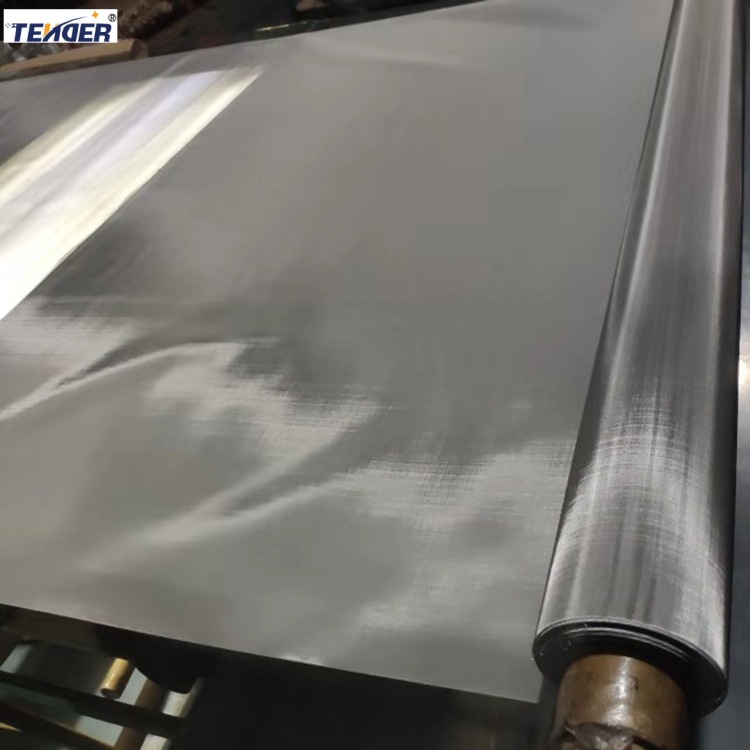

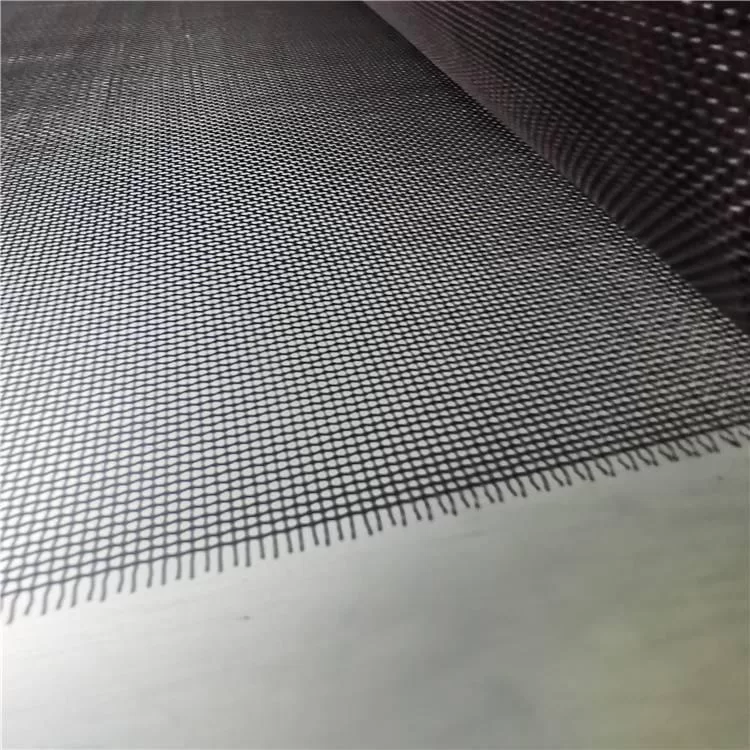

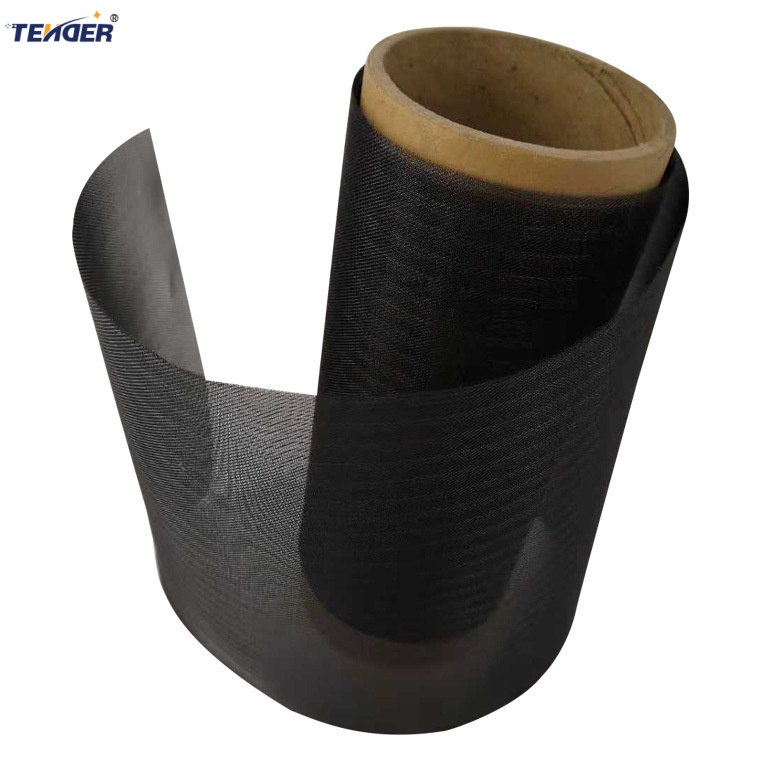

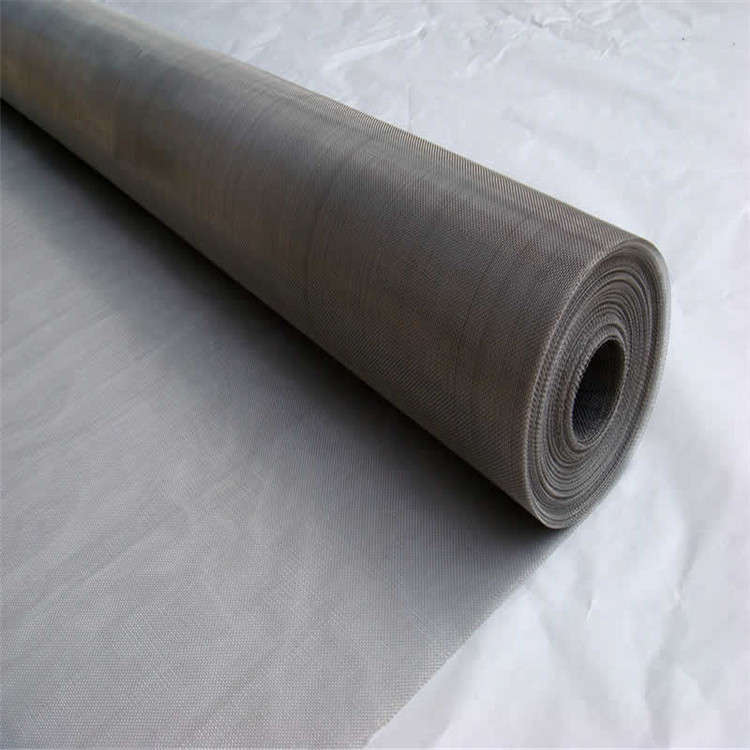

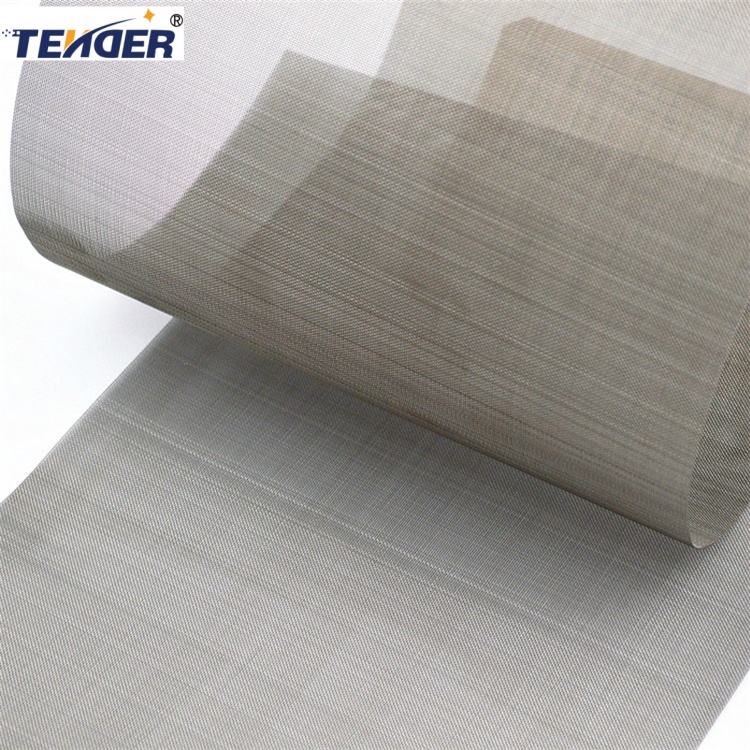

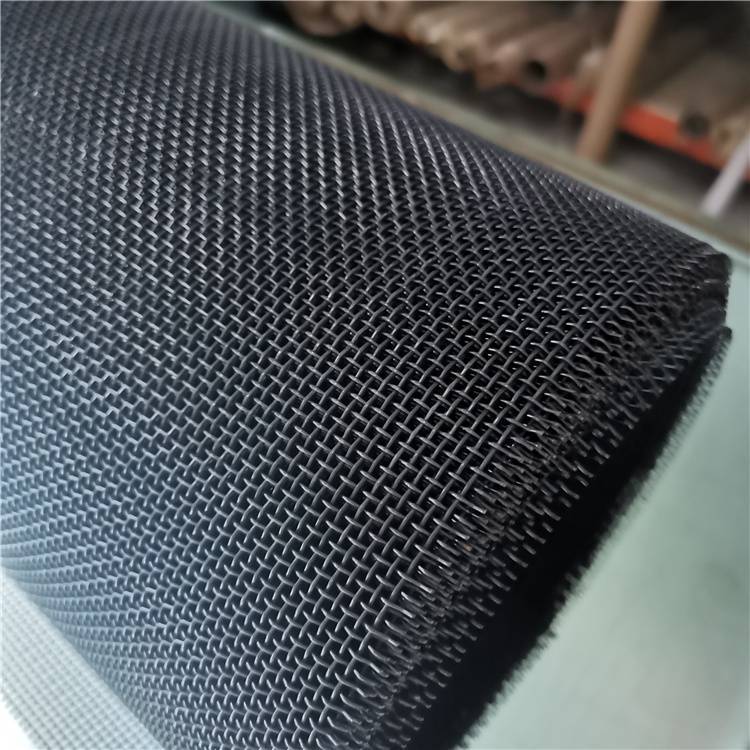

The Molybdenum Woven Wire Mesh is manufactured from high-purity molybdenum wire, known for its exceptional melting point and corrosion resistance. This molybdenum mesh is widely used in industries such as aerospace, electronics, and chemical processing, where extreme heat and corrosive environments challenge traditional materials.
Molybdenum's superior mechanical strength and thermal stability allow this woven wire mesh to maintain its integrity at temperatures exceeding 2,600°C. It is especially suitable for applications involving vacuum furnaces, heating elements, and filtration systems exposed to harsh chemical agents.
Our molybdenum wire mesh is woven with precision to ensure uniform openings and high tensile strength, providing excellent filtration and structural support. It is also resistant to oxidation and wear, guaranteeing long service life in demanding industrial settings.
The versatility of this molybdenum mesh allows customization in mesh size, wire diameter, and weaving pattern to meet specific requirements. Its excellent electrical conductivity also makes it a preferred choice in electronic components and specialized filters.
With rigorous quality control and advanced manufacturing, our molybdenum woven wire mesh delivers consistent performance and reliability, making it the ideal solution for challenging high-temperature and corrosive environments.
Our Molybdenum Wire Mesh is designed to withstand extreme environments, offering unmatched thermal resistance and mechanical durability. This molybdenum mesh is produced using high-grade molybdenum wire, which is prized for its high melting point, corrosion resistance, and excellent electrical conductivity.
Ideal for aerospace engineering, vacuum technology, and chemical processing industries, the molybdenum woven wire mesh performs reliably under intense heat and corrosive conditions that can degrade other metals. Its robust woven structure provides consistent filtration, reinforcement, and shielding where stability is critical.
The mesh is carefully woven to maintain even aperture sizes and superior tensile strength, enabling efficient particle separation and durable support. In addition, its resistance to oxidation and chemical wear ensures prolonged operational life even in highly aggressive environments.
Available in various mesh counts and wire diameters, this molybdenum wire mesh can be customized to fulfill precise industrial specifications. It also serves in electronic applications requiring high conductivity and heat resistance.
With a commitment to quality and precision, our molybdenum mesh offers an optimal combination of strength, heat tolerance, and corrosion resistance for demanding industrial and scientific uses.
