Product Description
Characteristic advantages
1. Excellent corrosion resistance, particularly resistant to seawater, saltwater, hydrofluoric acid, and alkaline environments
2. High strength and toughness are more resistant to impact and wear than ordinary stainless steel
3. High temperature resistant and capable of withstanding working environments up to 480 ° C (900 ° F)
4. Strong antioxidant properties, able to maintain stability even in oxidizing and reducing environments
Non magnetism is usually non-magnetic in the annealed state
Common specifications
The commonly used specifications are
Monel 400（UNS N04400）， High strength, resistant to hydrofluoric acid and seawater corrosion
Monel K500 (UNS N05500), an enhanced version of Monel 400 with higher mechanical performance
Mesh Count | Wire Diameter (mm / inch) | Aperture Size (mm / inch) | Weave Type | Typical Applications |
10 mesh | 0.60 mm / 0.0236" | 1.94 mm / 0.0764" | Plain Weave | Seawater filtration, protective mesh |
20 mesh | 0.50 mm / 0.0197" | 0.77 mm / 0.0303" | Plain Weave | Medium particle screening |
40 mesh | 0.28 mm / 0.0110" | 0.36 mm / 0.0142" | Plain Weave | Liquid/gas filtration |
60 mesh | 0.18 mm / 0.0071" | 0.24 mm / 0.0094" | Twill Weave | Precision filtration, lab use |
80 mesh | 0.15 mm / 0.0059" | 0.17 mm / 0.0067" | Plain Weave | Corrosive fluid filtration |
100 mesh | 0.10 mm / 0.0039" | 0.15 mm / 0.0059" | Plain / Twill | Chemical filtration |
150 mesh | 0.07 mm / 0.0028" | 0.10 mm / 0.0039" | Twill Weave | Fine powder filtration |
200 mesh | 0.05 mm / 0.0020" | 0.08 mm / 0.0031" | Twill Weave | Ultra-fine gas and liquid filtration |
Application Area
Marine equipment: inlet filter, pump protection net
Chemical industry: filtration of highly corrosive media (such as acid-base and salt solutions)
Aerospace: High temperature and high pressure filtration systems
Medicine and food: filtration applications with high safety requirements
Laboratory/Research: Precision filtration, reaction control

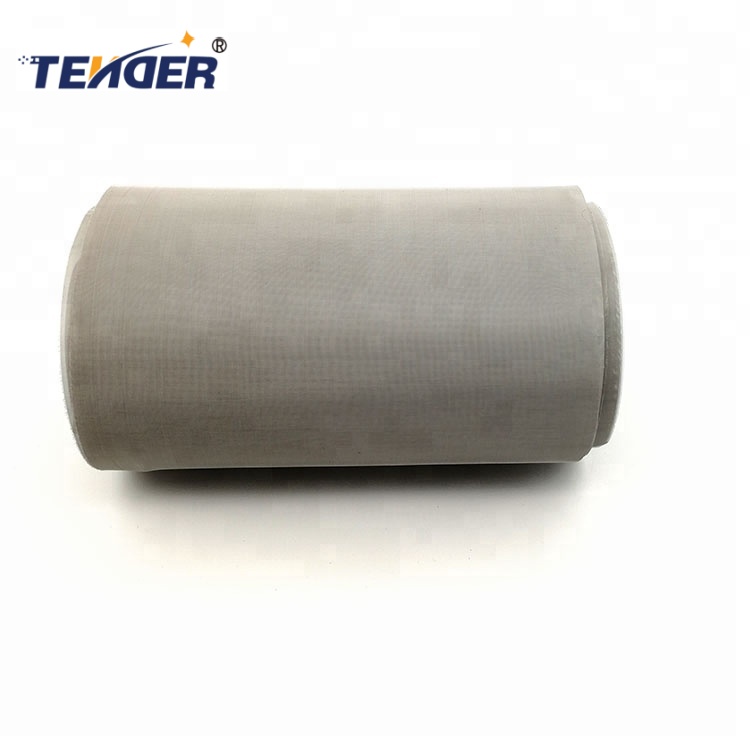

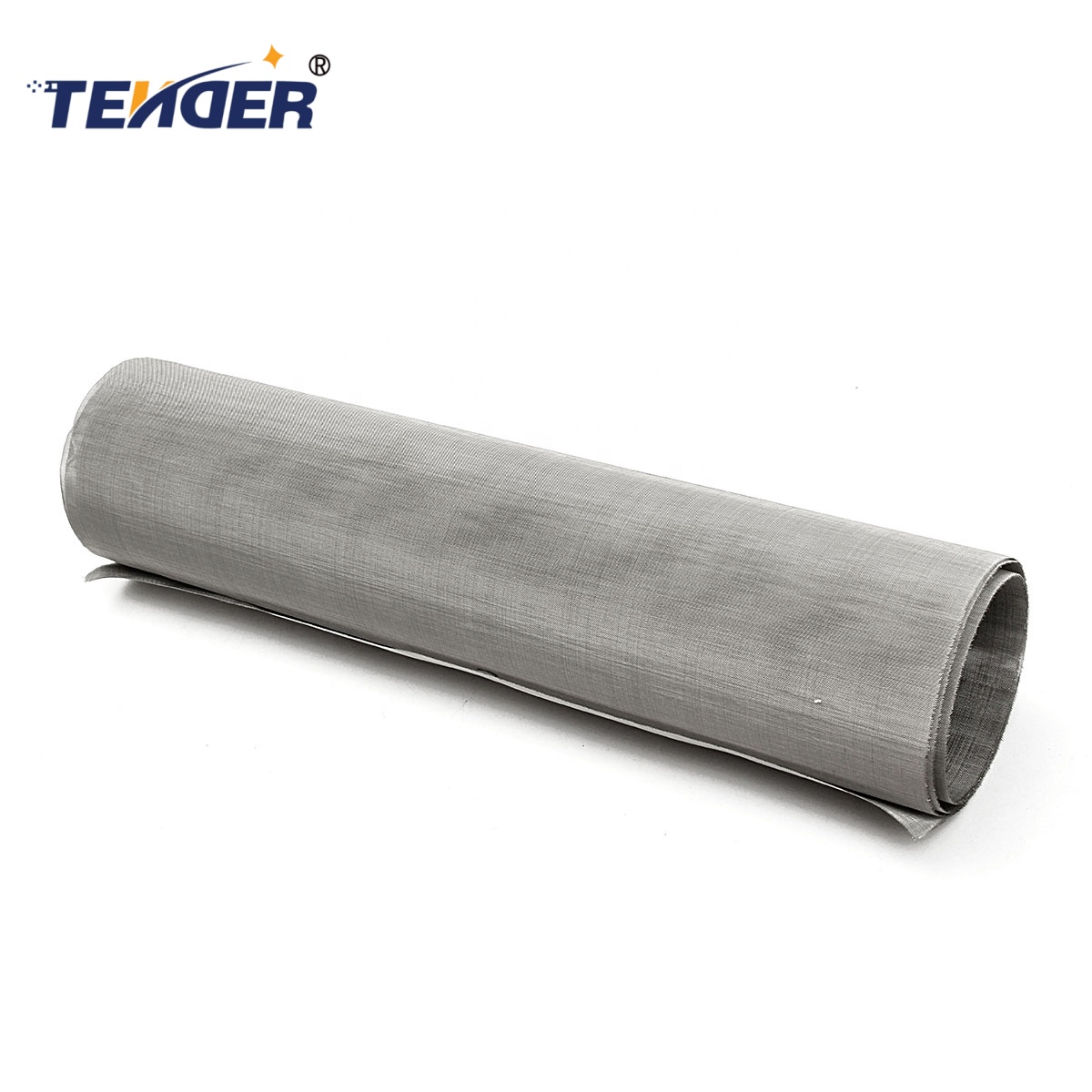

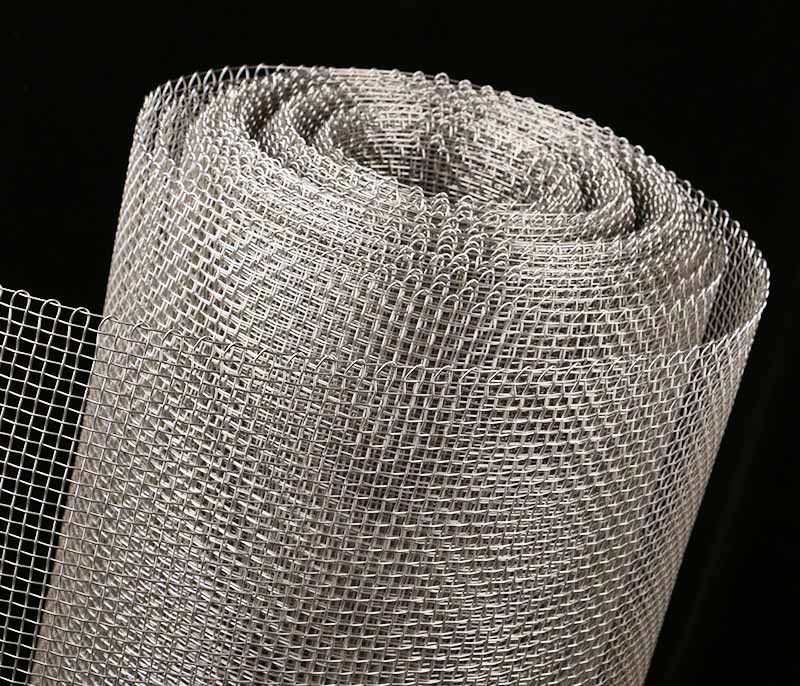

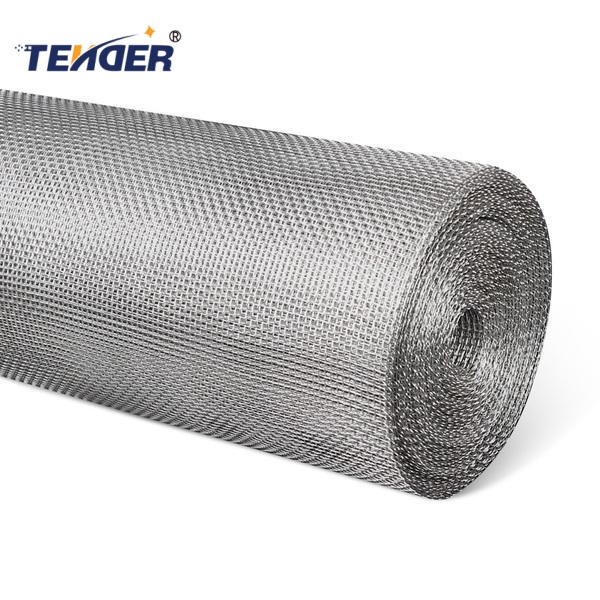

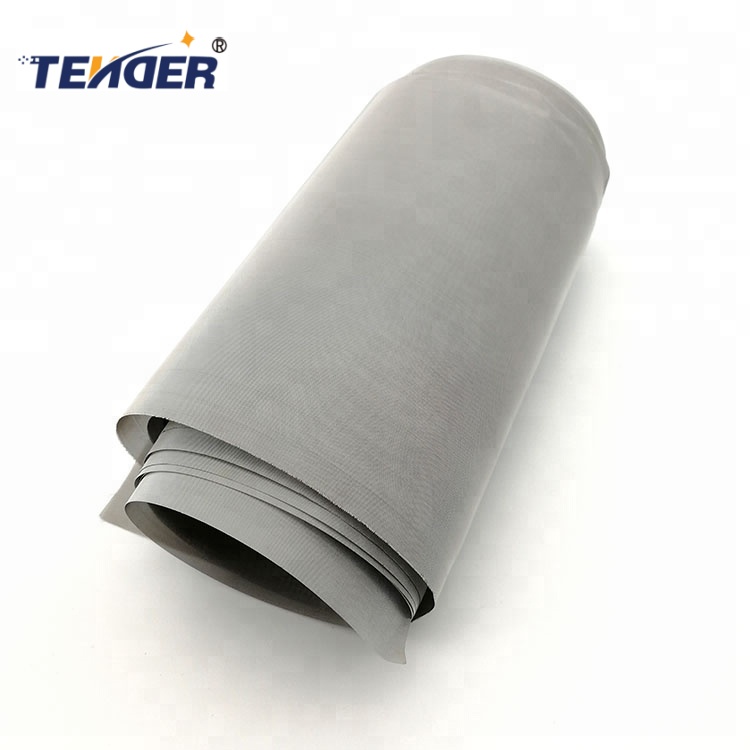

The Monel Woven Wire Mesh is made from high-grade Monel alloy, renowned for its excellent corrosion resistance, especially against saltwater and acidic environments. This woven wire mesh is widely used in marine, chemical processing, and aerospace industries where durability and reliability are paramount.
Monel’s unique composition, primarily nickel and copper, gives the mesh outstanding resistance to corrosion, pitting, and crevice corrosion, making it ideal for filtration, screening, and protective applications in highly aggressive environments. The mesh maintains mechanical strength even at elevated temperatures and harsh chemical exposures.
The precise weaving process ensures uniform mesh openings, providing effective filtration and particle separation while maintaining good airflow. Its toughness and flexibility allow it to withstand mechanical stress without deformation.
Our Monel Woven Wire Mesh can be customized in mesh size and wire diameter to suit various industrial needs, including protective screens, catalyst supports, and filtration media. Its resistance to biofouling also makes it suitable for marine equipment and desalination plants.
With stringent quality control and advanced manufacturing, this Monel woven wire mesh guarantees long-lasting performance and reliability in challenging industrial conditions.
Our Monel Woven Wire Mesh offers superior corrosion resistance and mechanical durability, making it an ideal solution for environments exposed to seawater, acids, and high temperatures. Manufactured from premium Monel alloy, this mesh excels in marine engineering, chemical processing, and aerospace industries.
Monel mesh stands out for its excellent resistance to saltwater corrosion, acids, and alkaline solutions, outperforming many other alloys in aggressive environments. The woven structure provides uniform openings for efficient filtration and separation, crucial for protecting sensitive equipment and processes.
Due to its strong mechanical properties, the mesh withstands heavy wear, vibration, and thermal cycling without losing shape or functionality. It is commonly used in filtration systems, protective barriers, heat exchangers, and catalyst supports.
Available in various mesh sizes and wire gauges, the Monel Woven Wire Mesh can be tailored to meet specific filtration and structural requirements. Its long service life and resistance to biofouling contribute to lower maintenance costs and increased operational efficiency.
Choosing our Monel woven wire mesh means investing in a reliable, high-performance material built to endure the harshest industrial conditions.
