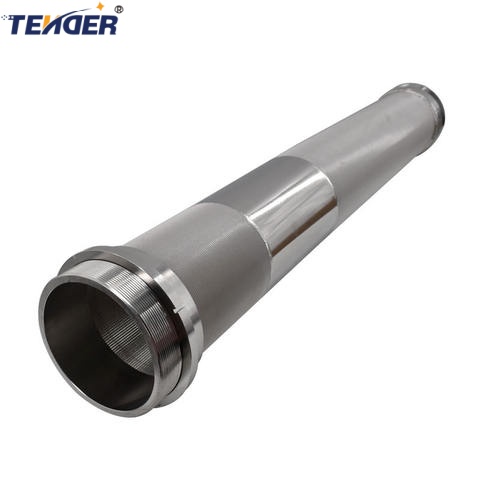

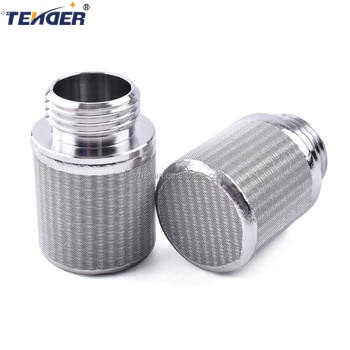

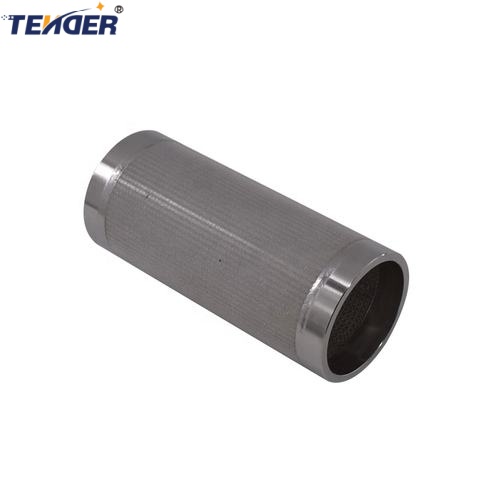

Sintered Mesh Filter Element

Name: Sintered Stainless Steel & Wire Cloth SS Filter Cartridge Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

Sintered mesh filter element is a porous structure filter element made by pressing multiple layers of metal wire mesh (usually stainless steel) through high-temperature vacuum sintering process. Its overall structure is stable, with evenly distributed pores, excellent mechanical strength, filtration accuracy, high temperature resistance, and corrosion resistance. Commonly used for filtering liquids, gases, and vapors, it is widely applied in industries such as petrochemicals, pharmaceuticals, food, water treatment, aviation, and energy.

Send Email Download

Product Description

Characteristic Advantages

1. High mechanical strength: Strong overall rigidity, not easily deformed, resistant to high pressure impact;

2. Stable pore structure: The filtration accuracy is stable and not affected by pressure fluctuations;

3. High temperature and corrosion resistance: suitable for high temperature and acid-base corrosion environments;

4. Easy to clean and reusable: can be blown back, cleaned with ultrasonic waves, and cleaned chemically;

5. Customizable structure and interface: meet diverse industrial needs.

Common Specifications

Parameter	Specification Range / Options
Filter Media	Multi-layer sintered stainless steel mesh (typically 5 layers)
Material	SS 304, SS 316L (standard); also available: Monel, Inconel, Hastelloy, Titanium
Number of Layers	5 layers (standard), or 3–7 layers customizable
Outer Diameter (OD)	25 mm – 150 mm (1" – 6")
Length	50 mm – 1200 mm (2" – 48")
Filtration Accuracy	1 μm – 200 μm (typical options: 1, 5, 10, 20, 40, 75, 100, 150 μm)
Pore Size Uniformity	High uniformity, deviation <±10%
Flow Direction	Inside to outside / Outside to inside (customizable)
Working Pressure	Up to 30 MPa (based on wall thickness and support layer)
Working Temperature	-200°C to +600°C (depending on material)

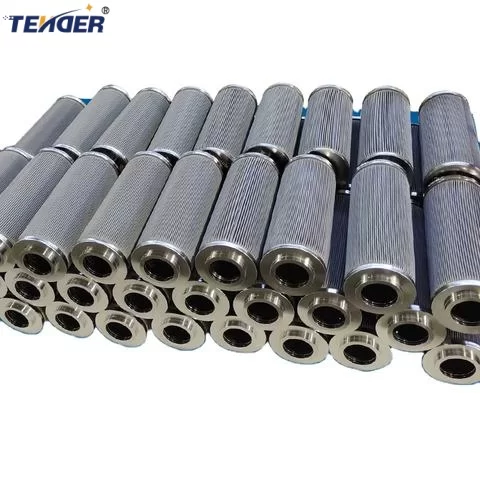

Filter Shape	Cylindrical (standard), conical, disc, capsule, pleated types available

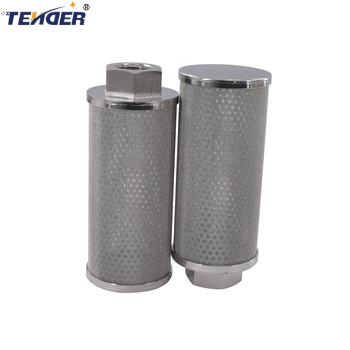

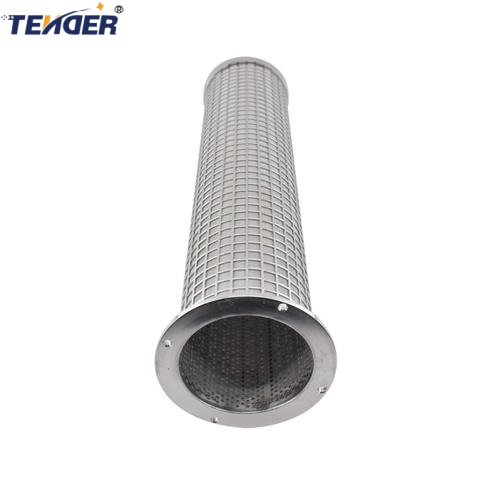

Support Structure	With inner perforated core or support frame
Sealing Methods	Welding (TIG), epoxy bonding, O-ring sealing
End Cap Types	Thread (NPT/BSP), flange, clamp, quick connect, customized
Surface Treatment	Pickling, passivation, polishing
Cleaning Methods	Ultrasonic, backflushing, high-pressure cleaning, acid/alkali soaking

Application Area

1. Petrochemical industry (filtration of high-temperature and high-pressure reaction systems)

2. Pharmaceutical industry (steam, liquid filtration)

3. Food and beverages (pre-treatment of beer and dairy products)

4. Water treatment (ultrafiltration, reverse osmosis pre filtration)

5. Gas purification (compressed air, hydrogen, natural gas)

6. Military and aerospace systems

Durable Sintered Mesh Filter Element for Precise Filtration

Our sintered mesh filter element combines strength and precision using 5 layer sintered wire mesh technology. Ideal for high-temperature and high-pressure applications, this sintered wire mesh filter ensures excellent flow, backwashability, and filtration performance across industrial processes.

High-Strength Sintered Wire Mesh Filter for Industrial Use

The sintered wire mesh filter is a high-performance filtration solution engineered for durability, precision, and versatility. Manufactured through sintering multiple layers of sintered wire mesh, this filter element provides excellent mechanical strength and stable pore structure, ensuring consistent filtration efficiency in challenging industrial environments.

The most common structure is the 5 layer sintered wire mesh, which includes a protective layer, a precision control layer, a dispersion layer, and two reinforcing layers. This construction allows for precise particle capture, excellent backwash performance, and long service life, making it ideal for applications such as petrochemical processing, hydraulic systems, gas filtration, and food and beverage manufacturing.

Unlike traditional mesh, sintered mesh filter elements are fused through high-temperature diffusion, eliminating issues like wire migration and deformation. The robust structure resists corrosion, heat, and pressure, making it suitable for use in both liquid and gas filtration.

Each sintered mesh filter element can be customized in size, filtration rating, and shape to suit specific equipment and flow requirements. With excellent flow characteristics and low pressure drop, it improves system efficiency and reduces maintenance frequency.

Whether you need inline filtration or high-precision fluid control, this sintered mesh solution delivers reliable and consistent performance for demanding operations.

5 Layer Sintered Wire Mesh for Consistent Filtration Performance

Our 5 layer sintered wire mesh is a premium solution for applications requiring uniform filtration and mechanical strength. Constructed from multiple layers of stainless steel sintered mesh, this filter element is sintered at high temperatures to create a strong, porous structure with fixed pore openings.

This sintered mesh filter element is widely used in industries like chemical processing, pharmaceuticals, aerospace, and water treatment, where precision and durability are essential. The layered construction includes a fine filtration layer sandwiched between support and protection layers, delivering superior flow distribution, particle retention, and long operational life.

One of the key advantages of this sintered wire mesh design is its backwashable and reusable nature. Unlike disposable filters, it can be cleaned multiple times without compromising structural integrity or performance. This greatly reduces downtime and operating costs.

The sintered wire mesh filter is highly resistant to corrosion, high temperatures, and mechanical stress. It maintains stable filtration under variable flow conditions and is available in a wide range of micron ratings. Whether used in gas filtration systems or hydraulic fluid filtration, it ensures stable performance and extended service intervals.

If you’re searching for a reliable sintered mesh product that balances strength, precision, and reusability, our sintered mesh filter element is the ideal choice. Custom options are available to match your equipment specifications and process demands.
